Comprehensive range of Spiral Wound, Ring Joint (RTJ), Kammprofile, PTFE, and Non-Metallic gaskets manufactured to precision for critical applications under high pressure and temperature.
Designed for absolute reliability across Oil & Gas, Petrochemical, and Power sectors.
Follow these 6 critical steps to prevent catastrophic blowouts.
Identify if the flange is Raised Face (RF), Full Face (FF), Ring Type Joint (RTJ), or Male-Female (MFM).
Confirm the system's design pressure (Class) and maximum operating temperature. This dictates metallic vs non-metallic choice.
What is flowing? Water, sour gas, acid, or steam? The gasket material must be chemically compatible to avoid deterioration.
Confirm Nominal Bore (NB) and Class rating (e.g., 150#, 300#, 2500#) to fix exact inner and outer dimensions.
Choose filler & metal core. E.g., PTFE for chemicals, Graphite for steam, Soft Iron for standard RTJ.
Ensure compliance. Is the project asking for ASME B16.20, EN DIN standards, or API 6A specific?
| Gasket Type | Pressure Max | Temp Max | Primary Material | Flange Face |
|---|---|---|---|---|

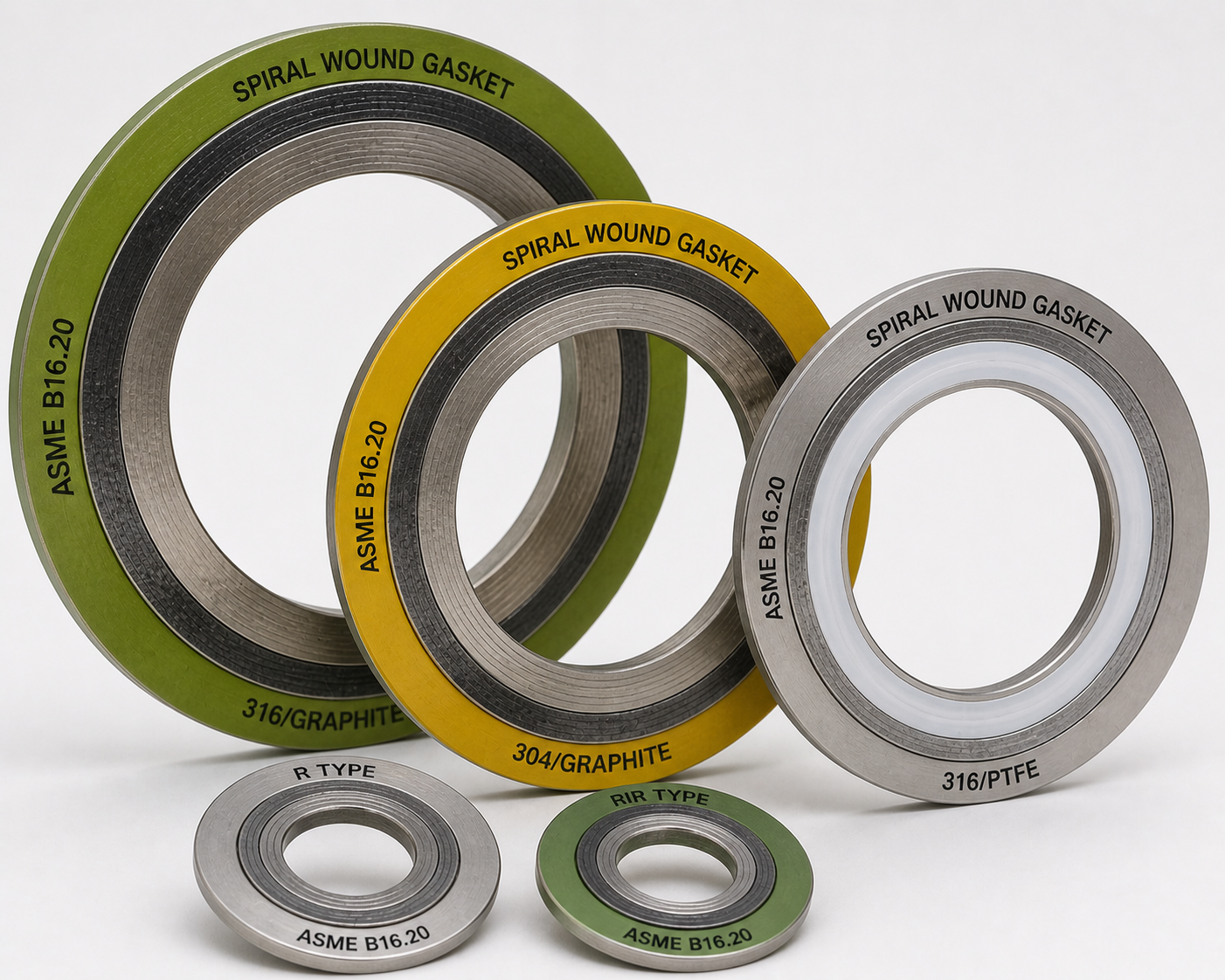

| Spiral Wound | 700 Bar | +1000°C | SS + Graphite/PTFE | RF / RJ / FF |

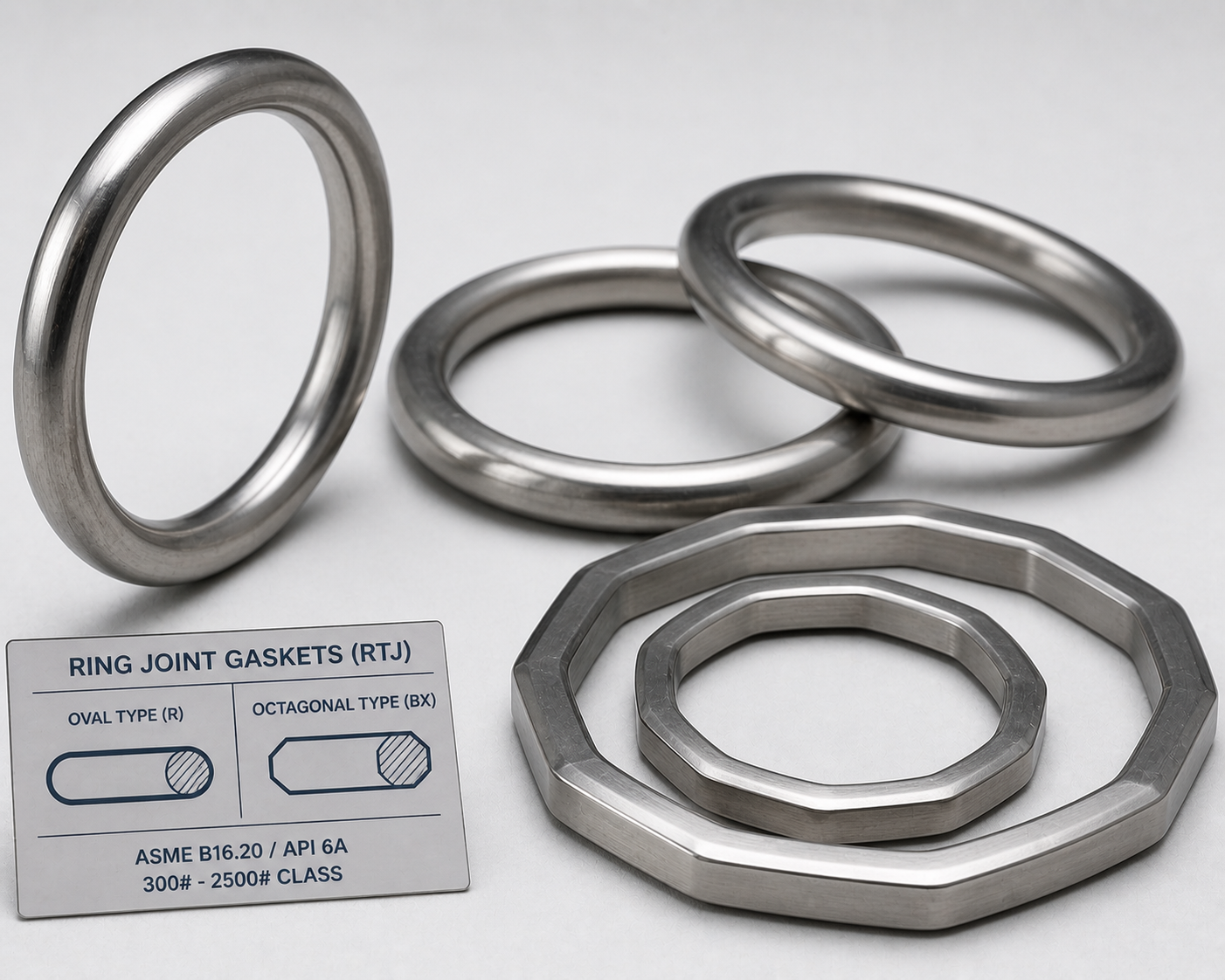

| Ring Joint (RTJ) | Class 2500 | +650°C | SS, CS, Monel, Inconel | RJ Only |

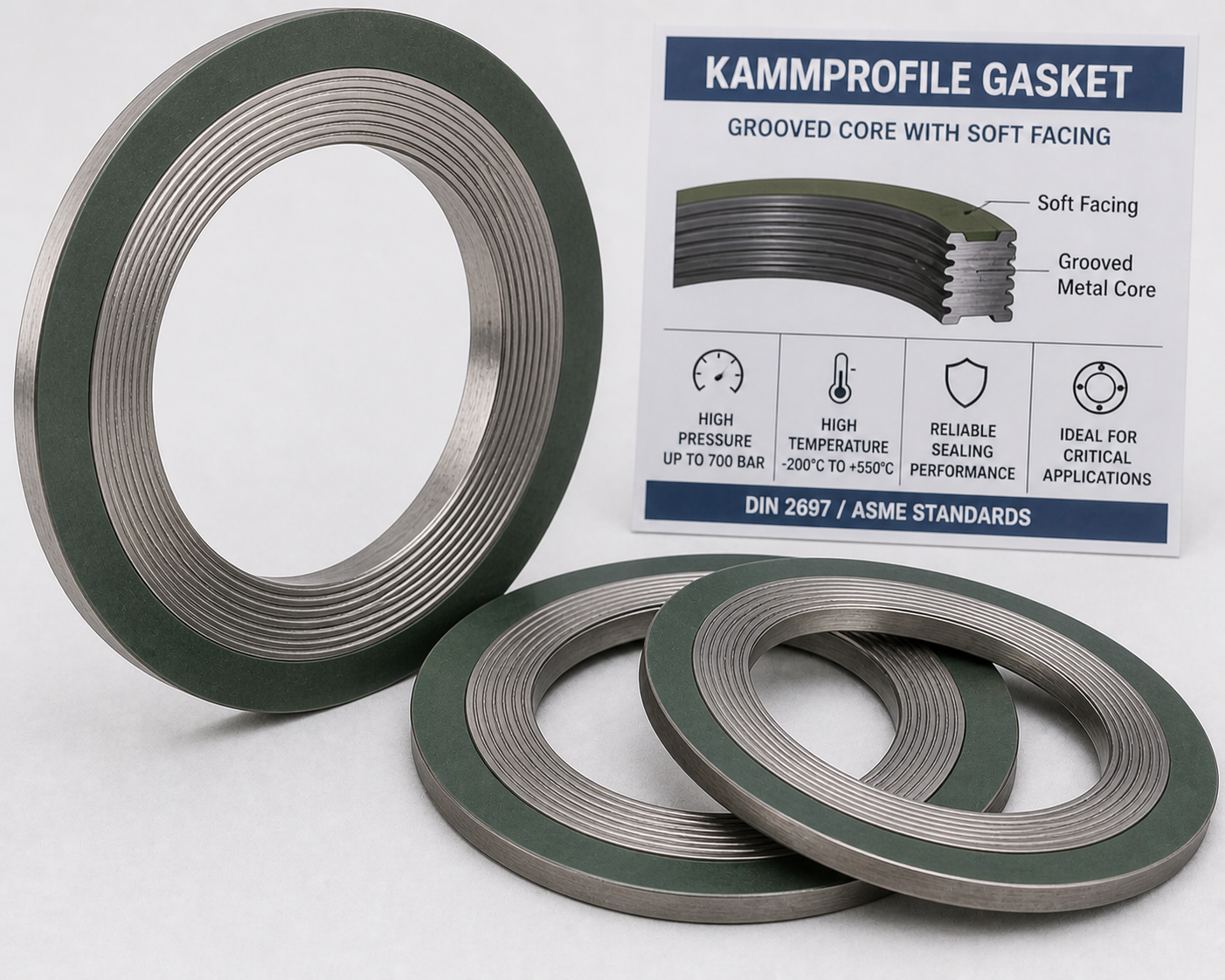

| Kammprofile | 700 Bar | +1000°C | SS + Soft Facing | RF / FF / MFM |

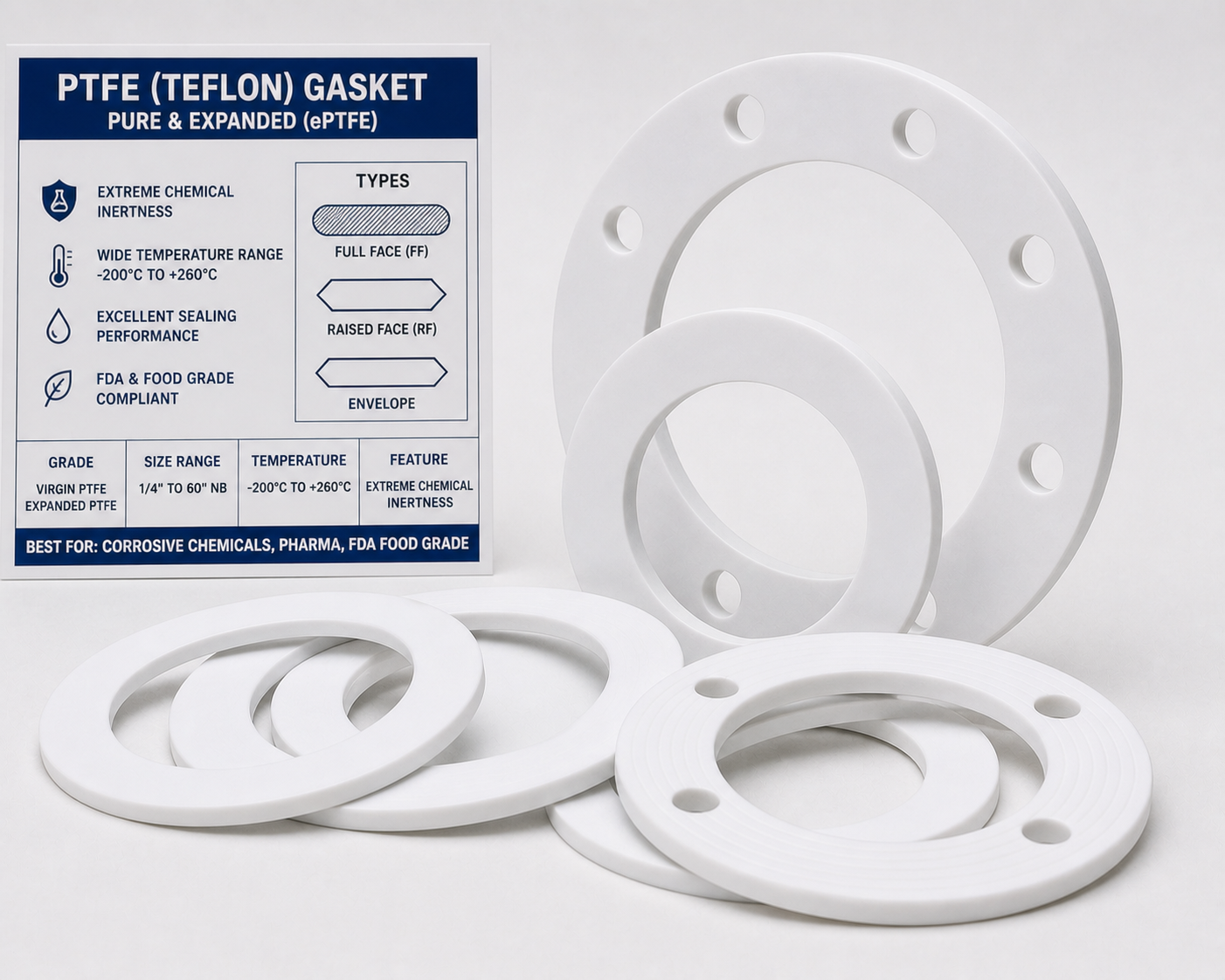

| PTFE Gasket | 100 Bar | +260°C | Virgin / ePTFE | FF / RF |

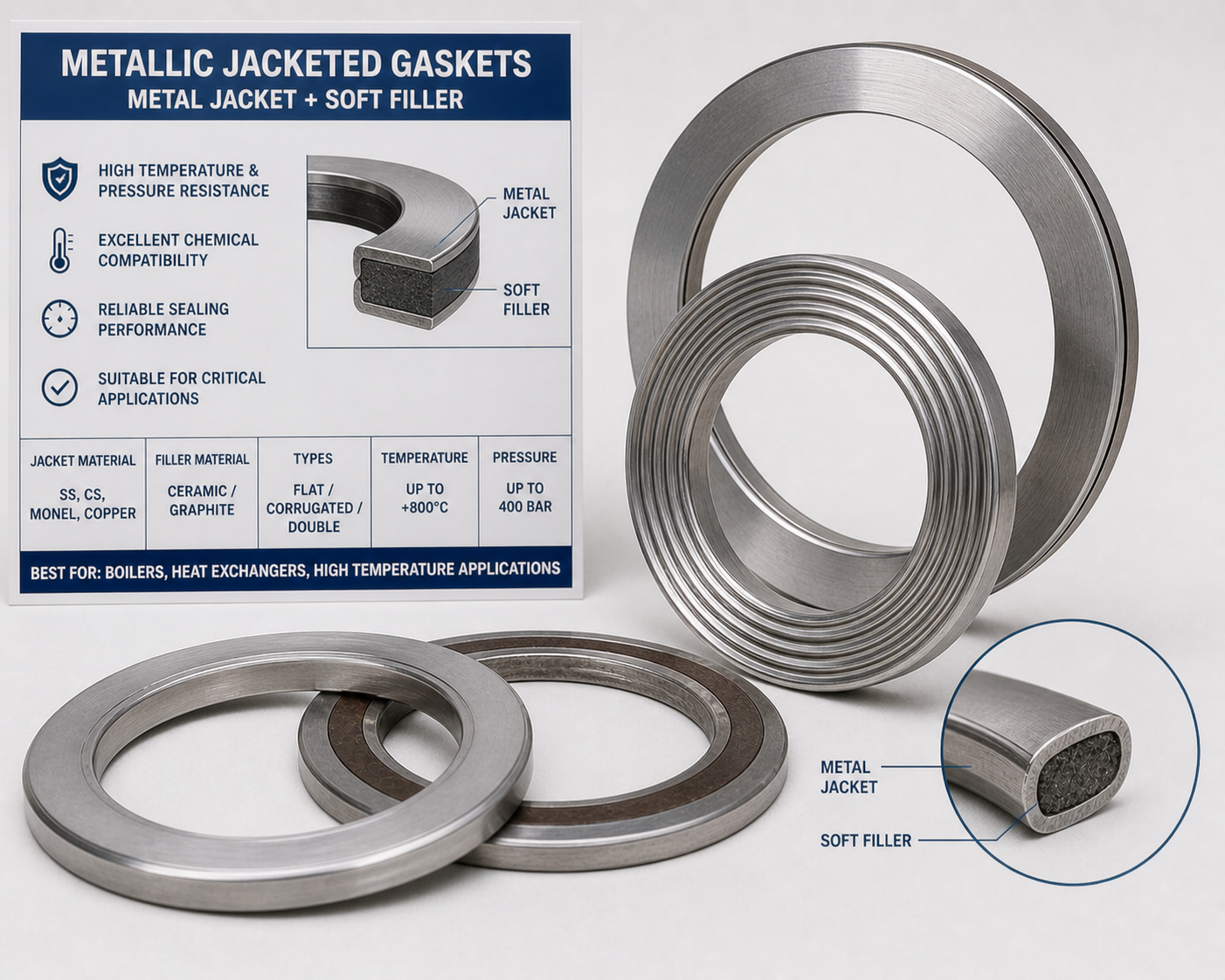

| Metallic Jacketed | 400 Bar | +800°C | Metal Jacket + Filler | FF / RF / MFM |
| Graphite Sheet | 200 Bar | +3000°C (Inert) | Expanded Graphite | FF / RF |

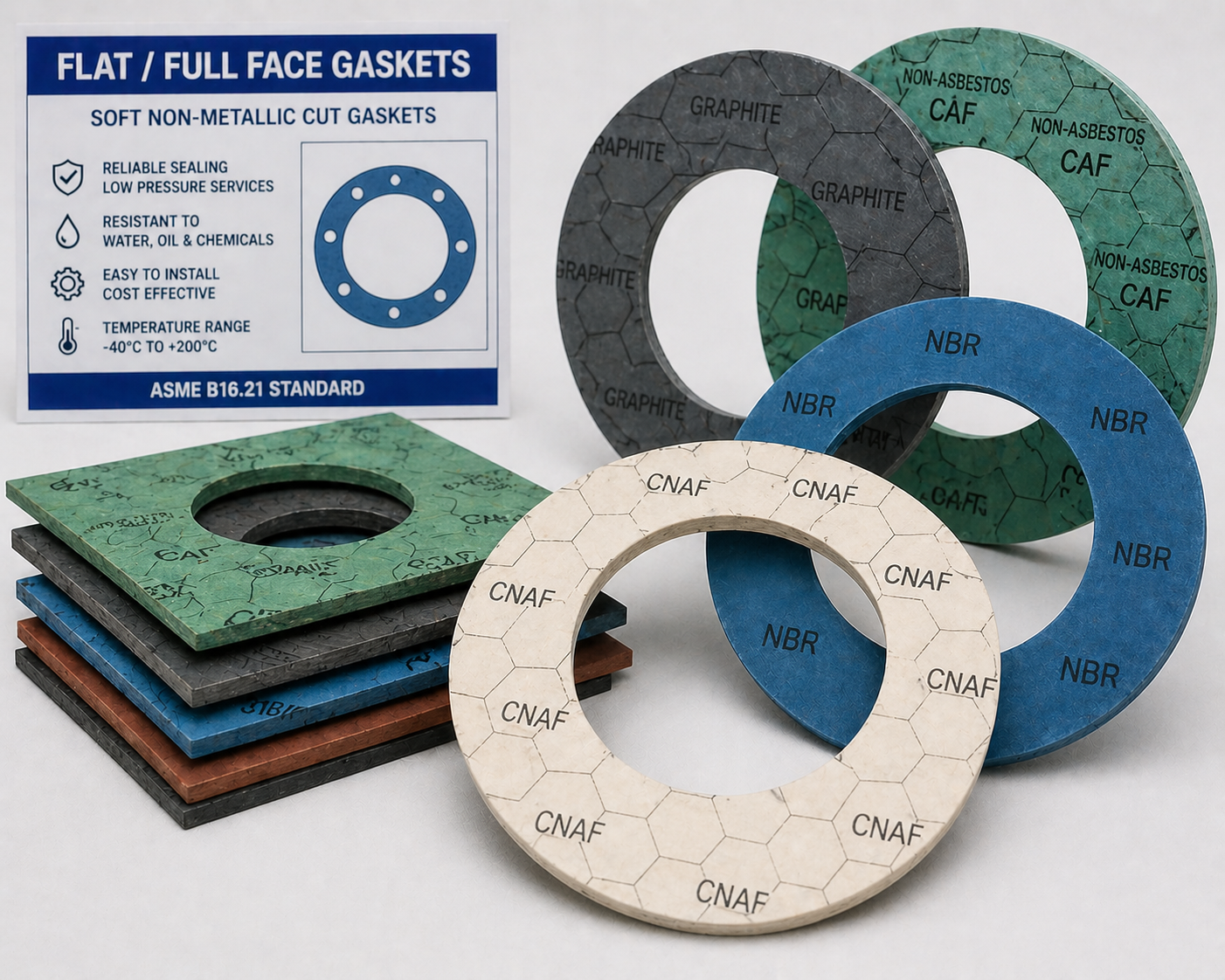

| Non-Asbestos / Rubber | 20 - 40 Bar | +500°C | CAF, NBR, EPDM | FF / RF |
Sealing critical infrastructure across the globe.
